Get started with Neuron Explorer

Overview

In this guide, you’ll capture a profile of your Neuron workload, launch Neuron Explorer, and upload the profile for interactive analysis.

By the end you will have:

• Captured a system or device profile

• Launched Neuron Explorer (browser or VS Code)

• Uploaded and viewed your profile in the interactive timeline

Prerequisites

• A Trainium or Inferentia EC2 instance (e.g., trn2.48xlarge, inf2.xlarge) with the AWS Neuron DLAMI

• SSH key pair (.pem file) for connecting to your instance

• Local machine with SSH client and a web browser (or VS Code)

Step 1: Connect and verify installation

Launch an EC2 instance with a Neuron DLAMI. See the setup guide for details. Then, SSH into your EC2 instance and verify Neuron Explorer is installed:

neuron-explorer --version

If not installed:

sudo apt install aws-neuronx-tools

Step 2: Set up SSH tunneling

Neuron Explorer serves a web UI on port 3001 and an API backend on port 3002. You access both from your local machine through SSH tunnels.

From your local machine, open the tunnels:

ssh -i ~/path/to/your-key.pem \
    -L 3001:localhost:3001 \
    -L 3002:localhost:3002 \
    ubuntu@<instance-ip> -fN

-i ~/path/to/your-key.pem	Path to your EC2 key pair
-L 3001:localhost:3001	Forwards the UI port
-L 3002:localhost:3002	Forwards the API port
ubuntu@<instance-ip>	Instance login (use ec2-user for Amazon Linux)
-fN	Runs tunnel in background (no shell)

Important

You must forward both ports. The UI on 3001 calls the API on 3002. If you only forward one, the page loads but shows no data. See Troubleshooting if you run into issues.

Step 3: Capture your profile

Profile types at a glance

Type	What it captures	When to use	Output files
System	Runtime events, API calls, model loads, CPU/memory	End-to-end execution flow	ntrace.pb, trace_info.pb, cpu_util.pb, host_mem.pb
Device	Hardware-level NeuronCore instruction traces	On-device compute bottlenecks	Matched .neff + .ntff pair
Both	Combined system + device view	Full optimization picture	All of the above

Note

Device profiles require a matched pair: the .neff and .ntff share a numeric hash in their filename (e.g., neff_395760075800974.neff pairs with 395760075800974_instid_0_vnc_0.ntff).

For instructions on how to capture a profile, see Capture Profiles in Neuron Explorer or Profile a NKI Kernel.

After profiling, ./profile_output will contain trace artifacts organized per process. Verify the output matches the Expected Output section.

Step 4: Launch Neuron Explorer

On the EC2 instance, run:

neuron-explorer view

This starts the UI server on port 3001 (web interface) and the API server on port 3002 (data backend).

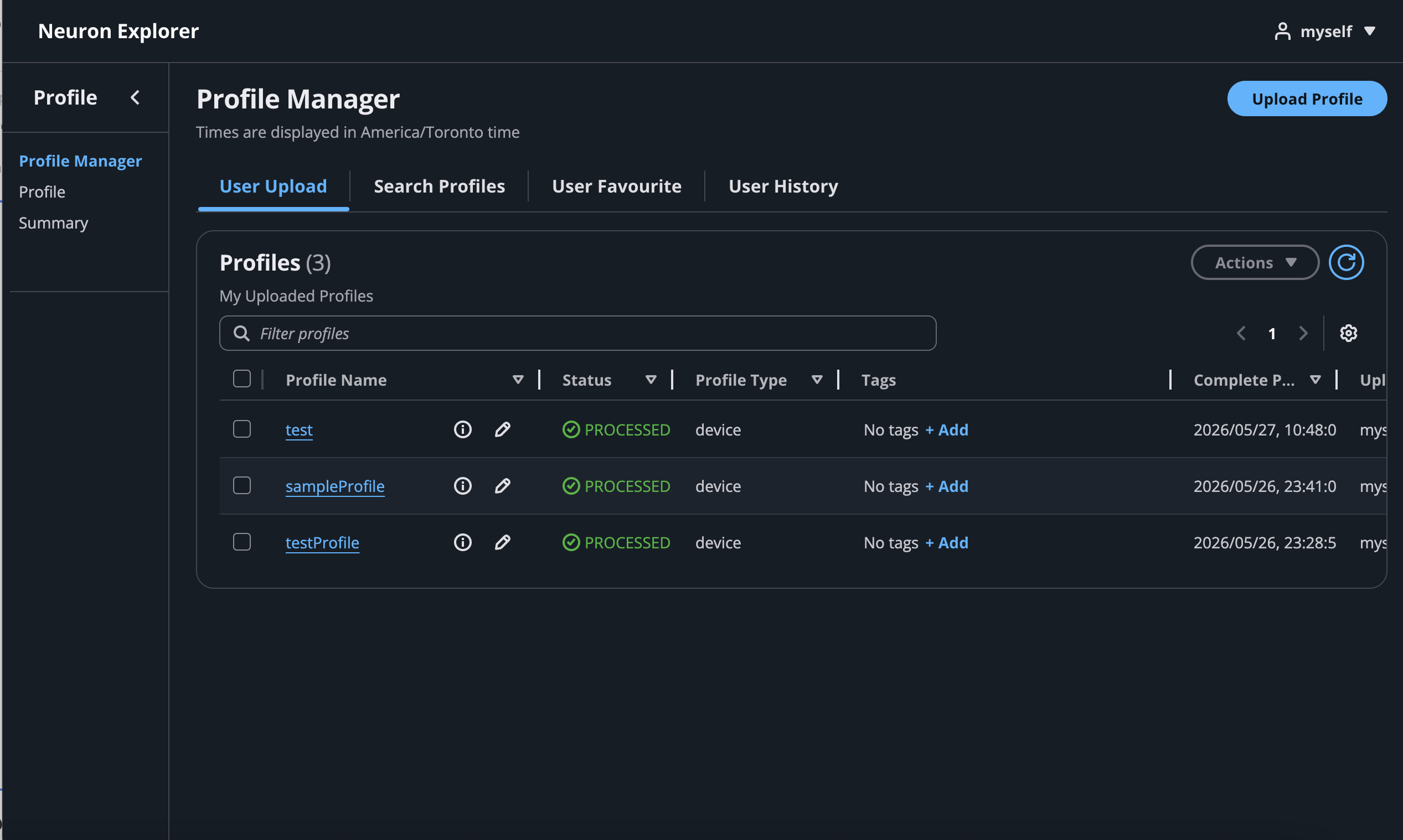

In your local browser, navigate to http://localhost:3001:

Expected output:

Using VS Code instead of the browser

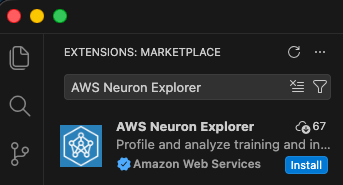

1. Install: Search for AWS Neuron Explorer (publisher: Amazon Web Services) in VS Code Extensions (Ctrl+Shift+X), or install from the VS Code Marketplace.

2. Ensure SSH tunnels are active (see Step 2: Set up SSH tunneling).

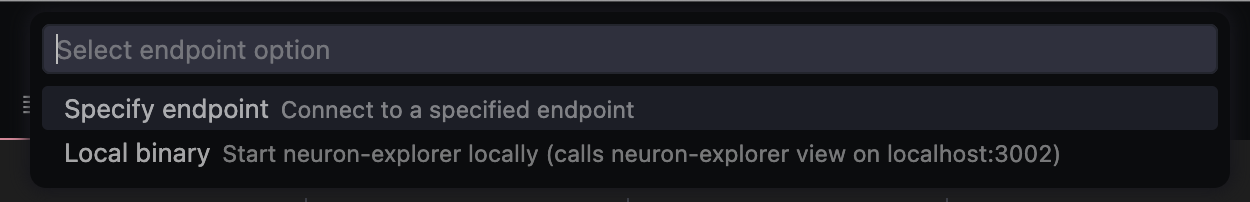

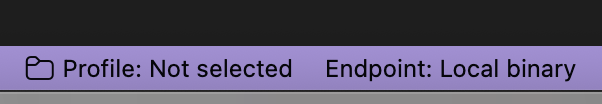

3. Configure the endpoint: click the extension in the left activity bar, select Endpoint on the bottom bar, choose Custom endpoint, and enter localhost:3002.

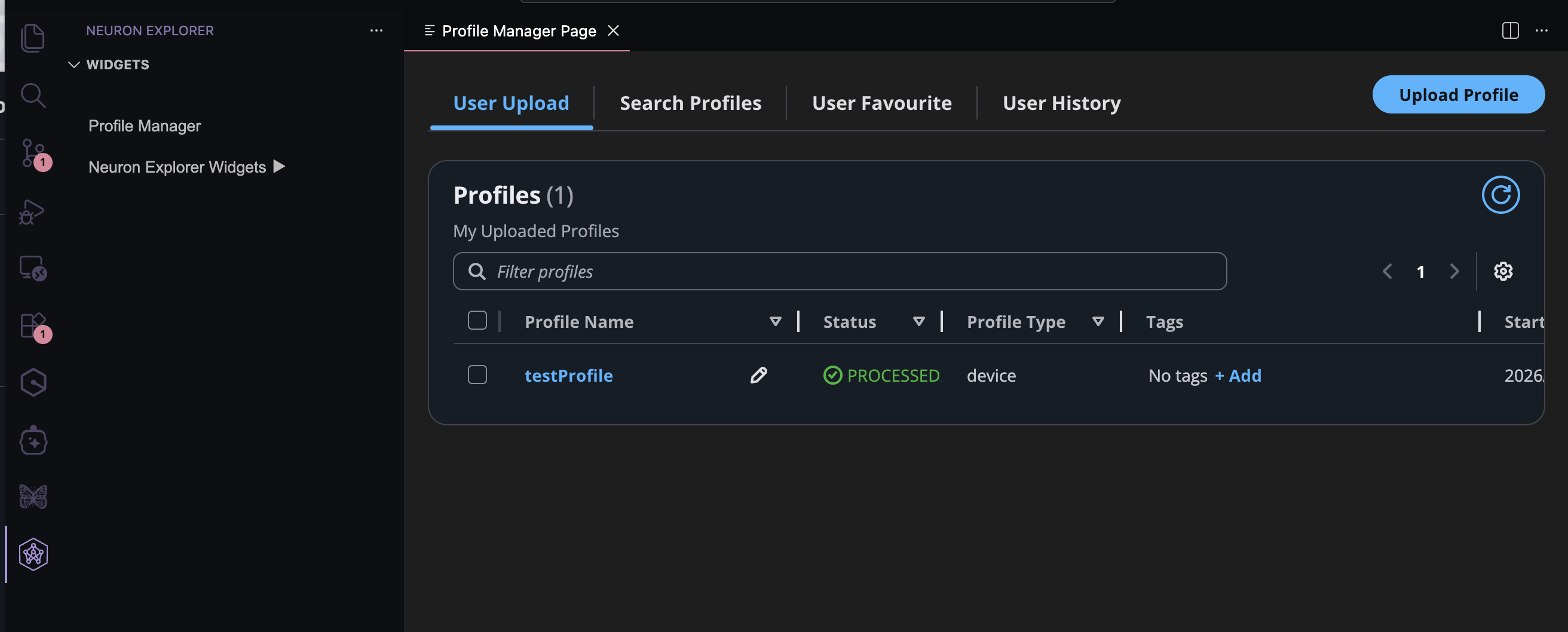

4. Access Profile Manager from the extension sidebar.

Note

The VS Code extension uses the same API server. All upload methods (CLI, web UI) work interchangeably — once a profile is uploaded, it’s visible in both interfaces.

Step 5: Upload your profile

Choose the method that fits your workflow:

Option A: CLI upload

If you’re already SSH’d into the instance, this is the quickest path:

neuron-explorer view \
    -d ./profile_output \
    --ingest-only \
    --display-name "my-profile-run"

Expected outcome: After processing, the CLI outputs a direct link to your profile. Open it in your browser (via the tunnel) to view.

Useful flags:

Flag	Description
--ignore-device-profile	Skip device-level traces (faster processing)
--system-trace-secondary-group worker_gid,lnc_idx	Reduce tracks for a cleaner view

Option B: Web UI upload

1. If your profile output is on the EC2 instance and you want to use the browser uploader locally, transfer the files first:

# Compress for faster transfer (recommended for large profiles)
# Run on EC2:
tar -czf profile_output.tar.gz ./profile_output

# Transfer to local machine:
scp -i ~/your-key.pem ubuntu@<instance-ip>:./profile_output.tar.gz .
tar -xzf profile_output.tar.gz

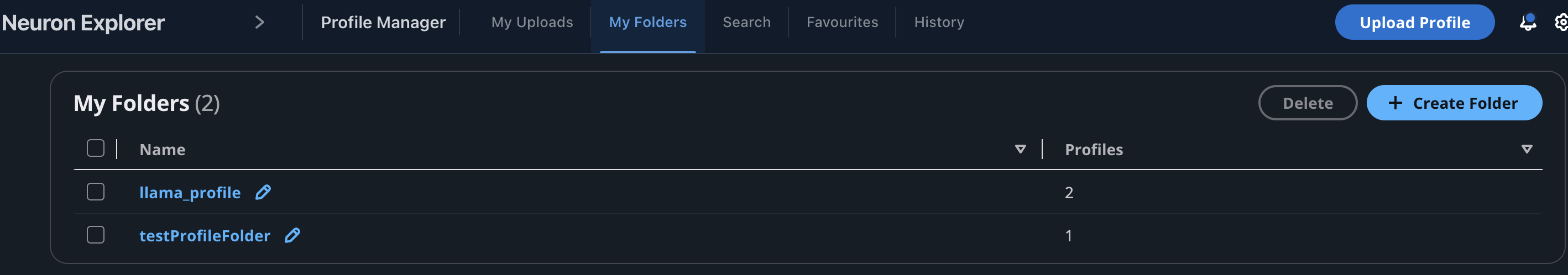

2. Use your local browser or VSCode to open http://localhost:3001. The Profile Manager page is displayed.



   Click the Upload Profile button on the top right to open the upload dialog:



3. Enter a Profile Name (required).

4. Choose your upload method based on profile type:

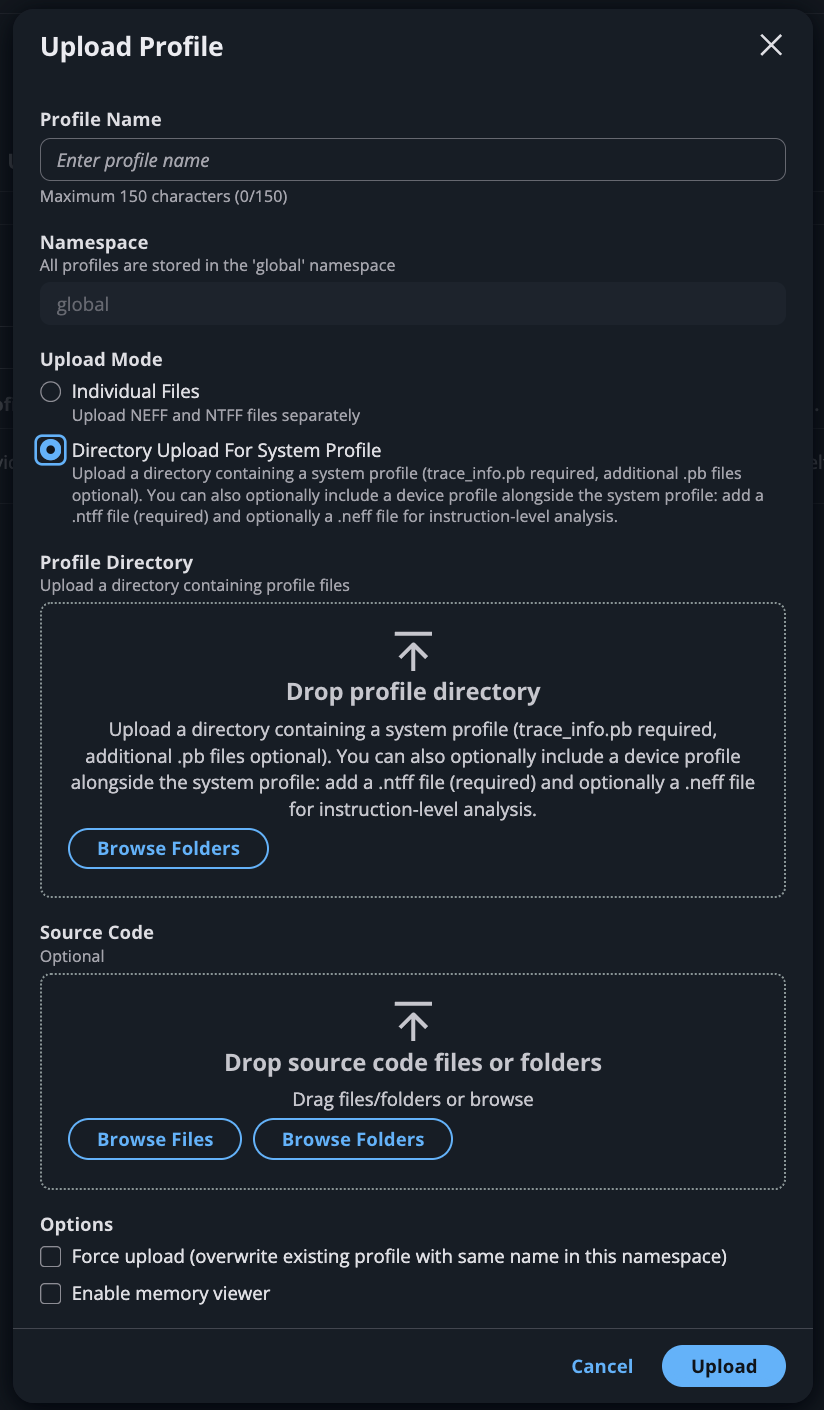

   • For system profiles (or system + device): click Upload Profile and select Directory Upload For System Profile. Then select the directory containing your .pb files (must include trace_info.pb).

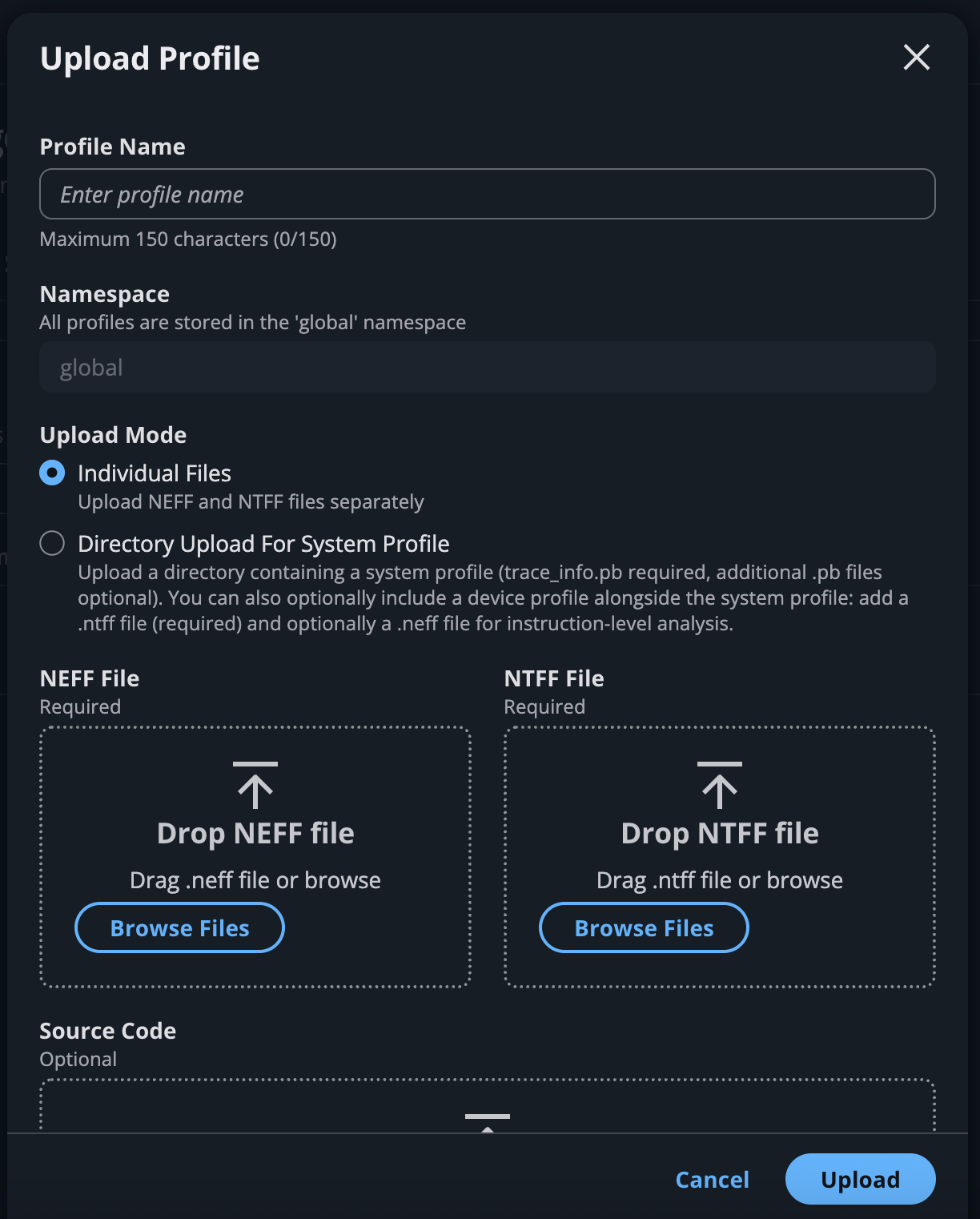

   • For device-only profiles: click Upload Profile and select Individual Files. Upload your .neff and .ntff files in the designated boxes.

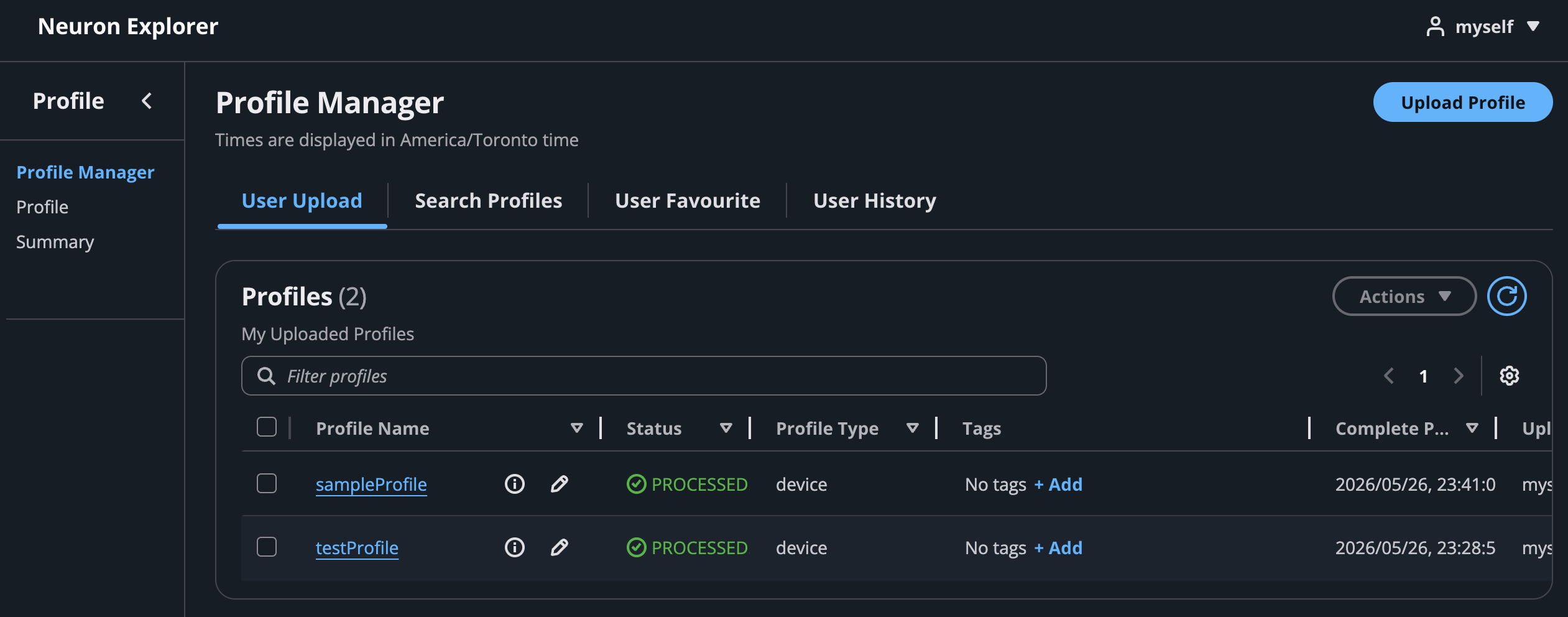

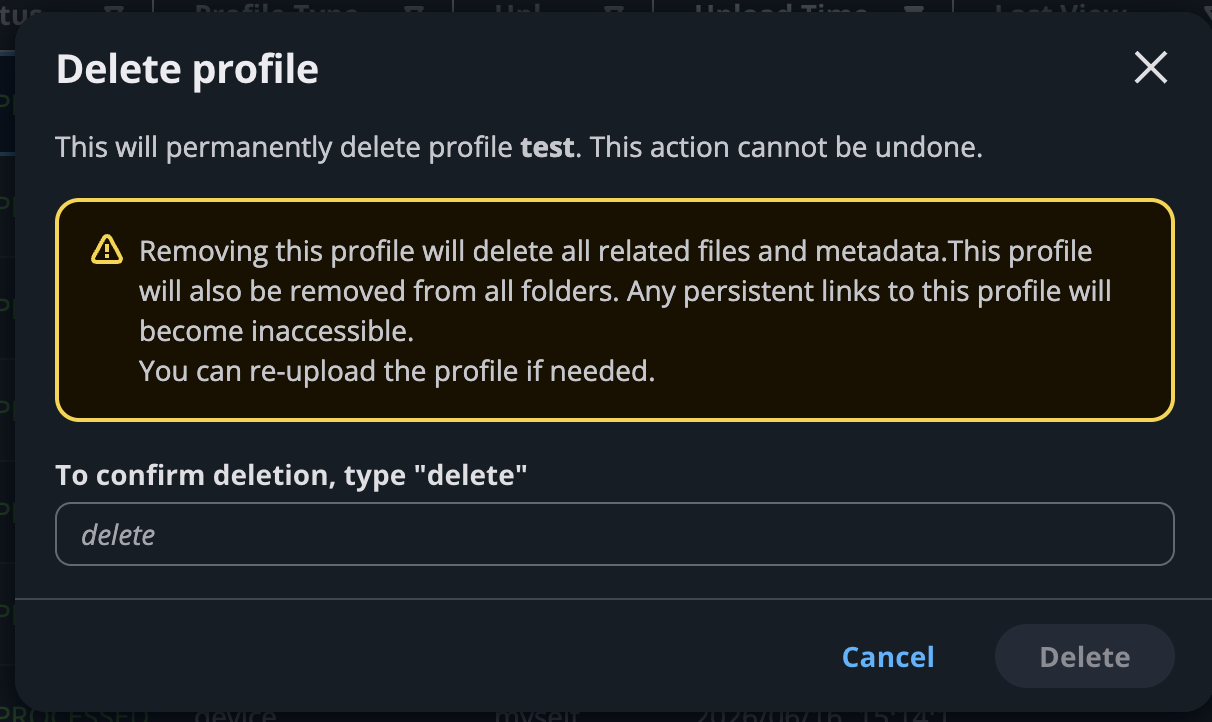

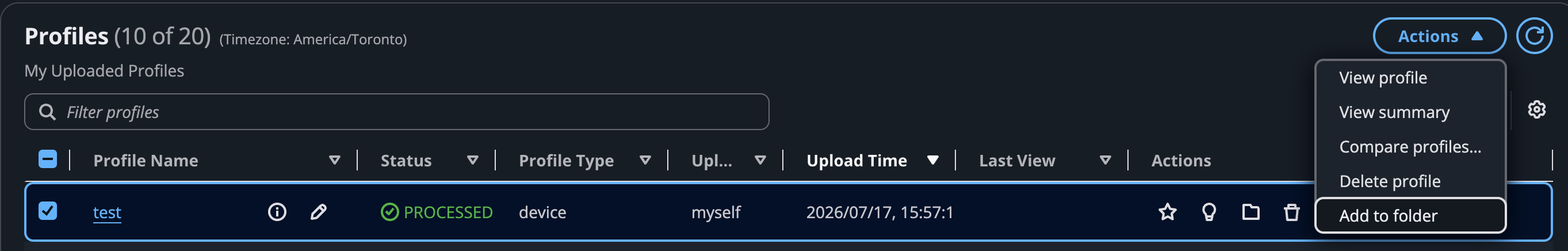

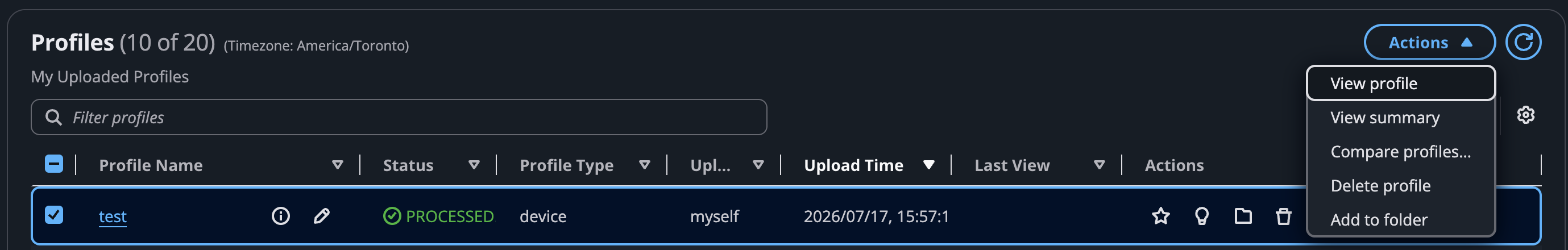

Expected outcome: The profile appears in the User Uploaded table. Click Refresh to check processing status. Once complete, click the profile name to open the interactive timeline.

Note

Why two upload methods? Directory Upload requires a system profile (ntrace.pb + trace_info.pb). It does not work with device-only profiles. For device-only profiles (just .neff + .ntff), use Individual Files. If you have both system + device files, use Directory Upload as it picks up everything.

Option C: Export to JSON

For programmatic analysis (custom scripts, coding agents), export to JSON. This generates system_profile.json and device_profile_model_<model_id>.json per compiled model.

neuron-explorer view \
    --session-dir ./profile_output \
    --output-format json \
    --output-file ./integrated_trace.json

Quick text summary (no UI needed):

neuron-explorer view -d ./profile_output --output-format summary-text

JSON schema (system_profile.json):

The file contains event objects. It also includes mem_usage (sampled host memory) and cpu_util (CPU utilization per core).

{
    "Neuron_Runtime_API_Event": {
        "duration": 27094,
        "group": "nrt-nc-000",
        "id": 1,
        "instance_id": "i-0f207fb2a99bd2d08",
        "name": "nrt_tensor_write",
        "timestamp": 1729888371056597613,
        "type": 11
    },
    "Framework_Event": {
        "duration": 3758079,
        "group": "framework-80375131",
        "instance_id": "i-0f207fb2a99bd2d08",
        "name": "PjitFunction(matmul_allgather)",
        "timestamp": 1729888382798557372
    }
}

Troubleshooting

Connection issues

#	Symptom	Cause	Fix
1	UI does not load	SSH tunnel misconfigured	Verify both ports: ssh -L 3001:localhost:3001 -L 3002:localhost:3002 ...
2	“Connection refused” on 3001/3002	Servers not running	Run neuron-explorer view on the instance first, then tunnel from local.
3	UI loads but shows no data	Only port 3001 forwarded	Add -L 3002:localhost:3002 to your SSH command.
4	neuron-explorer not found	Tools not installed	sudo apt install aws-neuronx-tools or use the Neuron DLAMI.

Upload and viewing issues

#	Symptom	Cause	Fix
1	Upload “successful” but Profile Manager shows “error process incomplete”	Missing required files	System profiles need ntrace.pb + trace_info.pb. Device profiles need matched .neff + .ntff.
2	Profile hangs in “Uploaded” state indefinitely	Processing failed silently	Try uploading without source code. If that works, check source is .tar.gz format.
3	Directory upload returns 500	Directory upload requires a system profile	For device-only profiles, use Individual Files instead.
4	“No profiling data”	Wrong directory	Use neuron-explorer view without --data-path. Use -d <dir> for profile output.

Profiling results issues

#	Symptom	Cause	Fix
1	“DMA results may not be accurate”	Compiler mismatch. DGE notifications are not collected by default, and this can also result in this warning.	Update SDK and recompile. Safe to ignore for system profiling. To enable more accurate DMA data, re-capture with --enable-dge-notifs flag. Warning, this can result in timeout errors for large NEFFs. If an error occurs you can run with the flag off.
2	Out-of-memory during profiling	ProfileMode.DEVICE reserves ~5 GB HBM on Trn2	Remove it from your modes list if you don’t need instruction-level device traces.
3	No CPU Neuron traffic in timeline	Framework trace not in correct subdirectory	This is likely because framework trace JSONs are not in per-process directories. Move neuron_framework_trace_rank_<N>.json into the matching <instance-id>_pid_<pid>/ subdirectory.
4	Profile shows compilation, not execution	Didn’t warm up	Run 3+ forwards before starting profiler.
5	Compiled model shows 0.2 ms (impossibly fast)	Async timing	Async dispatch — torch.compile queues work and returns immediately. Add explicit synchronization before timing: torch.neuron.synchronize() # drain queue before timing t0 = time.time() for _ in range(50): compiled_model(x) torch.neuron.synchronize() # wait for all work to complete avg_ms = (time.time() - t0) / 50 * 1000
6	Dropped events in system profile	WARN[0000] Warning: 1001 trace events were dropped during capture (stored 530560 out of 531561 total events). The trace buffers filled and oldest events were overwritten.	Increase buffer: set NEURON_RT_INSPECT_SYS_TRACE_MAX_EVENTS_PER_NC (default: 1,000,000). Uses more host memory. Apply capture-time filters (NeuronCore or event type). Shorten the profiled code region.
7	Incomplete JAX profiles	If your JAX profile has fewer events than expected, check:	Is jax.profiler.stop_trace called inside a with jax.profiler.trace block? Use stop_trace only with start_trace. Is NEURON_RT_INSPECT_ENABLE set to 1? It should NOT be set when using jax.profiler. Is NEURON_RT_INSPECT_OUTPUT_DIR set to the same directory passed to jax.profiler.trace?

Next steps

• Capture Profiles in Neuron Explorer — Full capturing and profiling reference (PyTorch, JAX, environment variables, CLI, filtering)

• Neuron Explorer Full Documentation — Complete viewer and feature reference
