Amazon EC2 Trn2 architecture#
Trn2 is an Amazon EC2 accelerated computing instance, purpose built for high-performance deep learning training and inference. This page provides an architecture overview of the trn2-16.48xlarge instance and the u-trn2x64 UltraServer.
Trn2 instance sizes#
Amazon EC2 Trn2 instances are available in the following sizes:
trn2-16.48xlarge
u-trn2x64 UltraServer
trn2-16.48xlarge#
Trn2-16 instances are powered by 16 Trainium2 devices connected using a high-bandwidth, low-latency NeuronLink-v3 device-to-device interconnect. The NeuronLink-v3 device-to-device interconnect enables collective communication between Trainium2 devices during distributed training and inference. It also allows for the pooling of memory resources from all 16 Trainium2 devices.

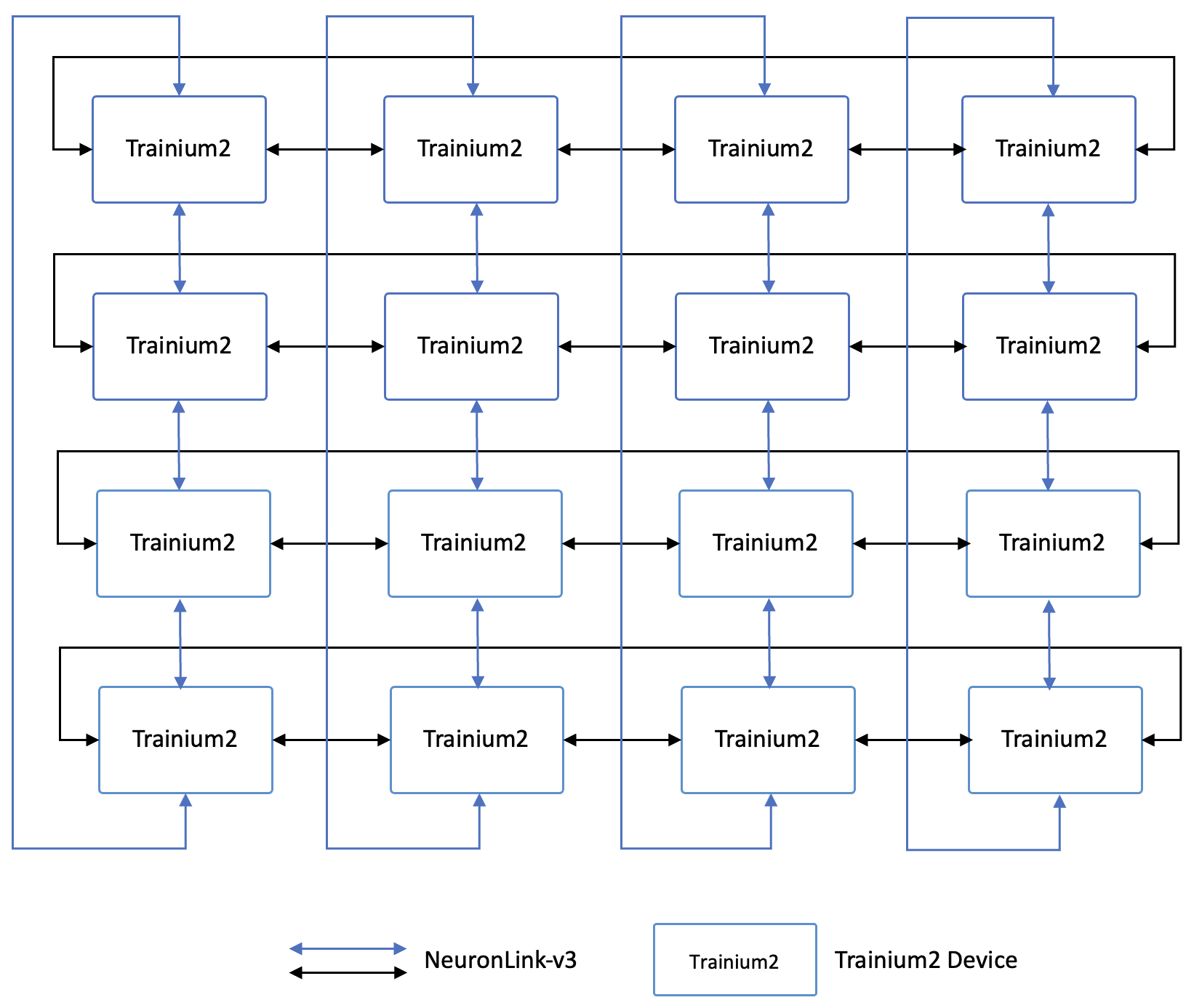

In a trn2-16.48xlarge instance, 16 Trainium2 devices are connected using a 4x4, 2D Torus topology. The following diagram shows the intra-instance connections of a Trn2-16.48xlarge instance
u-trn2x64 UltraServer#
A u-trn2x64 UltraServer comprises four trn2-16 instances connected together via the NeuronLink-v3 device-to-device interconnect. This allows for a total of 64 Trainium2 devices to be interconnected within a u-trn2x64 UltraServer. Trainium2 devices with the same coordinates in each Trn2-16 instance are connected in a ring topology. The following figure shows the inter-instance ring connection between Trainium2 devices.
Trn2 instance specifications#
The following table shows the performance metrics for Trainium2 based instances.
Perfomance specification |
trn2-16.48xlarge |
u-trn2x64 UltraServer |
|---|---|---|
# of Trainium2 devices |
16 |
64 |
vCPUs |
192 |
768 |
Host Memory (GiB) |
2,048 |
8,192 |
FP8 PFLOPS |
20 |
80 |
FP16/BF16/TF32 PFLOPS |
10 |
40 |
FP8/FP16/BF16/TF32 Sparse PFLOPS |
40 |
160 |
FP32 PFLOPS |
2.9 |
11.6 |
Device Memory (GiB) |
1,536 |
6,144 |
Device Memory Bandwidth (TB/sec) |
46.4 |
185.6 |
Intra-instance NeuronLink-v3 bandwidth (GB/sec/device) |
1,024 |
1,024 |
Inter-instance NeuronLink-v3 bandwidth (GB/sec/device) |
Not applicable |
256 |
EFA bandwidth (Gbps) |
3,200 |
3,200 |
